>> INDUSTRIAL INTEGRATION (MODBUS) USING AN ARDUINO

Who says that the use of Arduino devices are for hobby projects only - it has grown up!

I have recently been involved in a few industrial applications where the project involved integrating the Arduino platform with industrial hardware - which of course involves some proprietary protocols. One of these protocols is a serial communications protocol called Modbus - originally published by Modicon (now Schneider Electric). So how does one interface with such devices?

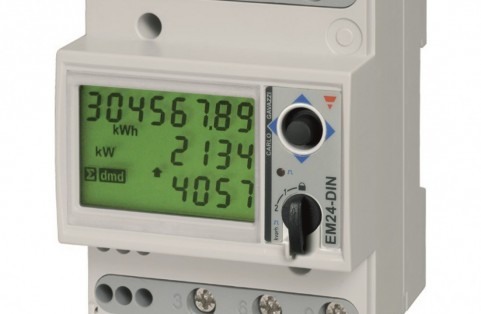

While the details of the project must remain confidential - I can at least give some insight on how I got my fingers dirty and started figuring out how the Arduino platform can be used; the EM24 DIN (Energy Management/Analyzer) is a great little unit you can pick up quite easily.

The first step was to find an RS-485 (physical layer for Modbus) adapter for the Arduino and hook it all up. My quick search led me to the cooking hacks website - where they have an excellent step-by-step example for a number of different micro-controllers. The tutorial is a must read - however it is more important how to figure out which parameters to query to achieve what you need.

What hardware you need:

• Arduino or compatible device
• RS-485 module
• Multi-protocol Radio Shield

To get started; first you need to get access to the Modbus register specification that is associated with the device you wish to interface with. For the EM24 - a few copies exist, but I found one on the SHM Communications website - as you can see there are a tonne of different pieces of information one can interface with using the Modbus protocol.

To get started with your sketch; you need to have the Arduino assume the role of a Modbus Master - basically, this means the EM24 will be a slave device and the Arduino will initiate requests for information.

// define the slave ID we will want to connect to
#define SLAVE_ID          4
#define SLAVE_BAUD        9600

// instantiate ModbusMaster object with a specific slave ID
ModbusMaster485 node(SLAVE_ID);

void setup()
{
  // initialize Modbus communication baud rate
  node.begin(SLAVE_BAUD);
}

The Modbus protocol requires the definition of a unique ID that represents the device the command will be issued to; in the above snipped this is called the SLAVE_ID - in my example, it uses ID number 4. This can be a number between 1 and 247 - the ID of 0 is reserved for broadcasting to multiple devices, but in most cases you can find or set the unique ID on the hardware itself.

There are typically two signals for connecting to the Modbus device; an inverted signal and a non inverted signal; or, the device can use a DB9 connector in which case pins 3 and 7 are typically used. It is vital to use the right polarity or no communication will be established.

There should also be a clearly documented baud rate in which the device communicates; this is typically either 9600 or 19200 with 8-N-1 (8 bit, no carry, 1 stop bit). The libraries provided by cooking hacks can support other configurations - but out of the box they assume 8-N-1.

So; how would we read the total kWh that the device reports?

// define the addresses for reading (modbus)
#define EM24_KWH_MAX      0x3E    // KWh * 10

// define the number of bytes to read for each address
#define EM24_KWH_MAX_B    4

void loop()
{
  // read the KWh of the EM24
  result = node.readHoldingRegisters(EM24_KWH_MAX, EM24_KWH_MAX_B);
  if (result == 0)
  {
    int32_t data;

    data = 0;
    data |= ( int32_t)node.getResponseBuffer(1) << 16;
    data |= (uint32_t)node.getResponseBuffer(0);

    // Debug_Trace("%lu.%u KWh\r\n", (data / 10), (data % 10));
  }

  // wait a second before the next
  delay(1000);
}

Believe it or not; it is that simple.

The secret here is knowing how to obtain the constants that are used to make a request for information - in this case EM24_KWH_MAX and EM24_KWH_MAX_B - which are parameters to the function node.readHoldingRegisters. On making such a request; a response buffer can contain a number of uint16_t values which can be put together or processed to receive information from a single register or a number of registers in sequence (if they follow each other).

The EM24 DIN register table outlines the kWh value is stored in register 0x3E and is of the type INT32. In order to correctly extract the value as a series of 16 bit integers; you need to be careful with the sign of the bytes you extract - I have tried to keep that simple in the example above.

The document also mentions the value is kWh*10 - so, if the number returned is 12345 - it represents the value of 1234.5 (one decimal point). While the Debug_Trace function is commented out above; it gives you an idea how to show the value on the console. If the request doesn't give a zero based result - check the signal connections to make sure the polarity is correct.

Once you get your first Modbus device connected - it wont be long before you start looking for other devices around your home or office you can interface with. I noticed the other day my solar inverter has a Modbus interface - it would be just as simple to connect to as the EM24 DIN.

Just make sure you do not go around electrocuting yourself! Happy tinkering!
